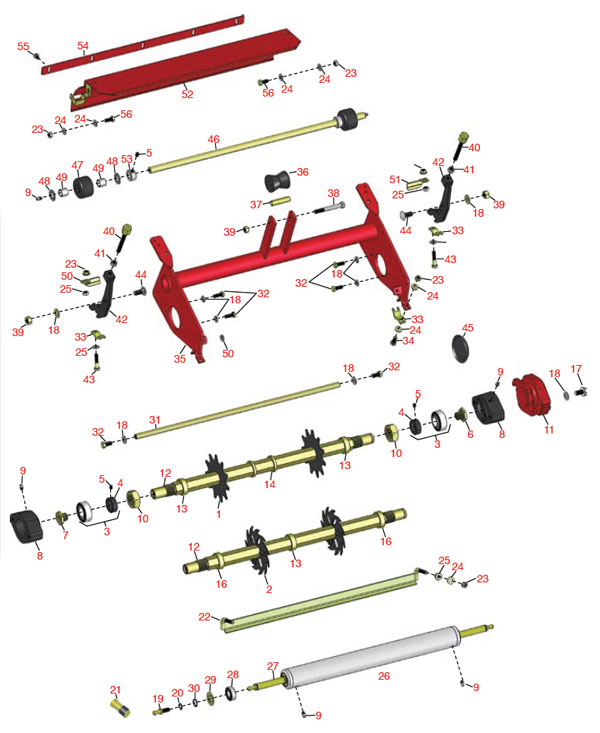

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
Service Express Kits
R106-6392 106-6392 Verti-Cut Blade Kit - 2mm Carbide Tipped

Verti-Cut Blades
1 R17-1590 17-1590 Verti-Cut Blade 36
2 R150109C 106-5422 Verti-Cut Blade - Carbide Tipped 1mm 36
2 R150209C 106-6355 Verti-Cut Blade - Carbide Tipped 2mm 36
3 R71-1360 71-1360 Bearing - Reel 2

Other Parts Available
3 R94-3405 94-3405 Use R71-1360
4 R251-77 251-77 Collar - Bearing 2
5 R3245-35 3245-35 Screw - Set 1/4-28 x 1/4 2
6 R94-9214 94-9214 Nut - Splined LH Thrd .812 Long 1
7 R93-1394 93-1394 Nut - Splined RH Thrd .812 Long 1
8 R95-7148 95-7148 Housing - Bearing Reel 2
9 R302-5 302-5 Fitting - Grease
10 R3220-18 67-5840 Nut - Jam V-Cut Shaft 2
11 R95-1642-01 95-1642-01 Counterweight 1
12 R94-9202 94-9202 Shaft - Vertical Mower 1
13 R17-1580 17-1580 Spacer - V-Cut Reel 1/2
14 R17-1600 17-1600 Spacer - V-Cut Reel 1/4
15 R48-9590 48-9590 Washer - Lock 10mm 4
16 R82-6600 82-6600 Spacer - V-Cut 2
17 R93-2569 93-2569 Bolt - Hex Washer Nyloc M10 2
18 R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 8
19 R94-2958 94-2958 Stud - Alloy Ball Joint 2
20 R3254-6 3254-6 Washer - Lock 3/8 2
21 R99-1460 99-1460 Receiver - Ball Joint 2
22 R94-9226 94-9226 Scraper - Front Roller 1
23 R33024-00 33024-00 Locknut - 8mm x 1.25 8
24 R3256-74 3256-74 Washer - Flat 14
25 R33014-00 33014-00 Use R68-9400
25 R68-9400 68-9400 Nut - 8mm x 1.25 Flanged 2
26 R95-5943 95-5943 Roller - Front 2 1
27 R95-5946 95-5946 Shaft - 2 Front Roller 1
28 R85-9970 85-9970 Bearing 2
29 R85-7190 85-7190 Washer - Shield 2
30 R32151-12 32151-12 Ring - Retaining 11/16 2
31 R93-2477 93-2477 Rod - Grass Shield 1
31 R98-2196 98-2196 Use R93-2477
32 R33115-020 33115-020 Use R48-7770
32 R48-7770 48-7770 Bolt - Hex Hd M10 x 20 2
33 R99-8168 99-8168 Collar - Bracket Hoc 2
34 R57-6380 33114-025 Bolt - Hex Hd M8-1.25 x 25 2
35 R98-3587-01 98-3587-01 Frame - Thatcher 1
36 R93-2463 93-2463 Roller - Lift 1
37 R93-2464 93-2464 Spacer - Roller 1
38 R33115-080 33115-080 Bolt - Hex Hd M10 x 80 1
39 R33025-00 33025-00 Locknut - 10mm x 1.5 Jam 3
40 R95-1633 95-1633 Adjustment - Hoc 2
41 R3296-5 3296-5 Locknut - 3/8-24 Jam Nylon 2
42 R95-1638 95-1638 Bracket - Hoc Adj 2
42 R99-6858 99-6858 Bracket - Rear Roller 2
43 R33114-030 33114-030 Bolt - Hex Hd M8-1.25 x 30 2
44 R33125-025 33125-025 Bolt - Carriage M10 x 25 w/Nut 2
45 R150485 2410-30 Cap - Protective Bearing Housing 1
46 R94-9210 94-9210 Shaft - Rear Roller 1
47 R94-9211 94-9211 Wheel Assy - Rear Roller 2
48 R257-11 257-11 Washer - Thrust Hardened 4
49 R95-7497 95-7497 Bushing - Rear Roller Wheel 4
50 R94-9219 94-9219 Scraper - Rear Roller - RH 1
51 R94-9220 94-9220 Scraper - Rear Roller - LH 1
52 R98-3551 98-3551 Shield 1
53 R150328 94-9213 Collar - Retaining 5/8 2
54 R36-7260 36-7260 Bar - Cut Off Grass Shield 1
55 R32144-73 104-2065 Screw - Machine Hex Washer Head 5
56 R33114-020 33114-020 Use R66-3160
56 R66-3160 33114-020 Bolt - Hex Hd 2
57 R33115-025 33115-025 Bolt - Hex Hd M10-1.5 x 25 4
70 R65-8600 65-8600 Knob - Height Adjusting
71 R10-5060 10-5060 Bracket - Roller Adj
72 R10-5010 10-5010 Screw - Roller Adjustment
73 R441674 441674 Screw - 5/16-18 x 1-3/4 Carriage
74 R3256-23 3256-23 Use R453009
74 R453009 3256-23 Washer - Flat 5/16 SAE
75 R3296-29 3296-29 Locknut - 5/16-18 ESNA
76 R94-2958 94-2958 Stud - Alloy Ball Joint
77 R3254-6 3254-6 Washer - Lock 3/8
78 R3253-3 3253-3 Washer - Lock 1/4
79 R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4
R93-6688 93-6688 Decal - Warning
