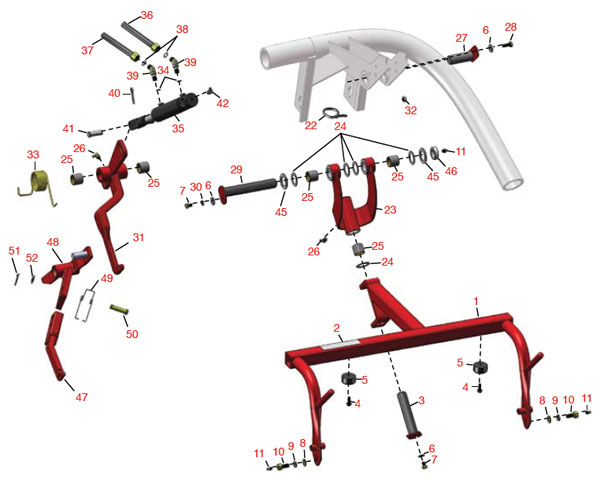

Item # R&R
Part No.
OEM
Part No.
Description Qty
Req
1 R112-0284 112-0284 Frame - Pull Rear 1
1 R105-0451 105-0451 Frame - Pull Rear (Center) 1
1 R86-9820 86-9820 Frame - Pull Center 1
1 R108-8633 108-8633 Use R112-0284
1 R104-2056 104-2056 Use R86-9820
2 R93-8064 93-8064 Decal - Warning 1
2 R93-6688 93-6688 Decal - Warning 1
3 R10-6090 10-6090 Pin - Pivot 4 7/8 Long 1
4 R49-2040 32104-95 Bolt - Hex Washer 1/4-20 x 3/4 2
5 R94-4548 94-4548 Bumper - Rubber Pull Frame 2
6 R3256-23 3256-23 Use R453009 3
6 R453009 3256-23 Washer - Flat 5/16 SAE 3
7 R322-1 322-1 Bolt - Hex Hd 5/16-18 x 1/2 2
8 R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 2
9 R3253-21 3253-21 Washer - Lock 3/8 2
10 R11-0160 11-0160 Screw - Roller Shaft 2
11 R302-5 302-5 Fitting - Grease 5
22 R3M41933 3290-379 Cable Ties - 6IN Bulk - Pack/100 1
23 R105-0452 105-0452 Pivot Hinge Assy 1
24 R10-8110 10-8110 Washer - Pivot Pin 5
25 R3-0348 3-0348 Bushing 4
26 R302-60 302-60 Zerk - Grease 90 Deg. 1
27 R68-5560 68-5560 Pivot Pin - Cylinder 1
28 R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4 5
29 R27-2550 27-2550 Pin - Hinge 6-5/8 Long 1
30 R3253-4 3253-4 Washer - Lock 5/16 Zinc 1
31 R110-3955 110-3955 Lift Arm Assy - Center - Red 1
32 R3296-29 3296-29 Locknut - 5/16-18 ESNA 1
33 R110-3953 110-3953 Spring - Torsion - Rear 1
34 R237-22 237-78 O-Ring 2
35 R106-9064 106-9064 Cylinder - Hydraulic Center 1
35 R107-2563 107-2563 Seal Kit 1
36 R83-1680 83-1680 Hose - Rear Lift Cyl 1
37 R88-9700 88-9700 Hose Assy - Rear Lift Cylinder 1
38 R237-21 237-21 O-Ring 2
39 R340-103 340-103 Fitting - Hyd 45 Deg 2
40 R3272-11 3272-11 Pin - Cotter 1
41 R283-8 283-8 Clevis Pin - 1/2 x 1 27/64 1
42 R700415 302-2 Zerk - Grease 1/8 PTF 45 Deg 1
45 R5-1226 5-1226 Spacer - Lift Cyl 2
46 R93-2384 93-2384 Spacer - Carrier Frame 1
47 R62-2420 62-2420 Bar - Lift RH / Rear 2
48 R68-5380 68-5380 Arm - Lift Rear 1
49 R57-7650 57-7650 Spring - Torsion Lift Arm 1
50 R63-8750 63-8750 Clevis Pin 1
51 R3272-12 3272-12 Pin - Cotter 1/8 x 1-1/4 1
52 R3256-26 3256-26 Use R453017 1
52 R453017 3256-26 Washer - Flat 1/2 1
