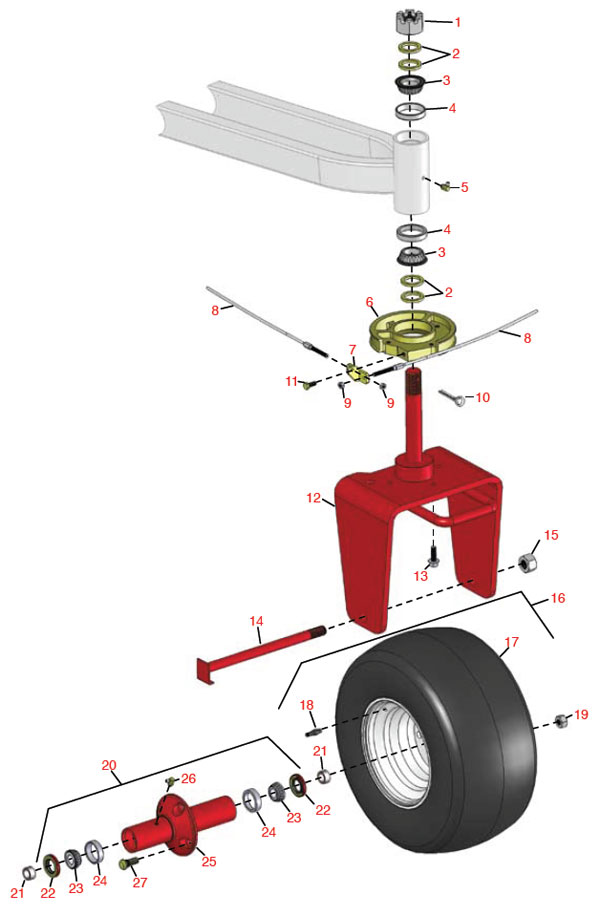

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R32136-9 32136-9 Nut - 1-1/4-12 Slotted 1
2 R18-6320 18-6320 Washer - Steering Fork 4
3 R254-70 254-70 Bearing - Tapered 2
4 R254-61 254-61 Cup 2
5 R700414 302-11 Zerk - Grease 1/4-28 45 Deg 1
6 R95-5955-01 95-5955-01 Drum - Steering 1
7 R95-5956 95-5956 Cable Anchor Assy 1
8 R95-5965 95-5965 Cable - Steering Fits 3050 1
9 R444754 3296-4 Locknut - 5/16-24 Center 2
10 R3272-37 3272-37 Pin - Cotter 1/4 x 2 1/2 1
11 R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4 1
12 R95-5952-01 95-5952-01 Caster Fork - 1
13 R3234-24 3234-24 Bolt - Hex Serrated Washer Hd 3/8-16 x 1-1/4 3
14 R5-3934 5-3934 Bolt - Steering Caster Fork 1
15 R3296-15 3296-15 Locknut - 3/4-16 Nylon Jam 1
16 R150314 R&R Only Tire - w/Wheel Assy - Black 1
17 R353844 28-3680 Tire - 18 - 9.50 x 8 Smooth 2 1
17 R217-60 217-60 Wheel - With Valve Stem - White 1
17 R700141 232-37 Tube - 18 - 8.50/9.50 x 8 1
18 R232-27 232-27 Stem - Valve w/ Cap 1
19 R242-50 242-50 Nut - 1/2-20 Wheel 4
20 R72-9710 72-9710 Hub Assy - Rear Tire 1
21 R74-3730 74-3730 Spacer 2
22 R253-111 253-111 Seal 2
23 R254-78 254-78 Bearing 2
24 R254-79 254-79 Cup - Bearing 2
25 R72-9710 75-9440 Hub Assy - Rear Tire 1
25 R75-9440 75-9440 Use R72-9710 1
26 R700414 302-11 Zerk - Grease 1/4-28 45 Deg 1
27 R10-6830S R&R Only Stud - Drive - Hub 4
