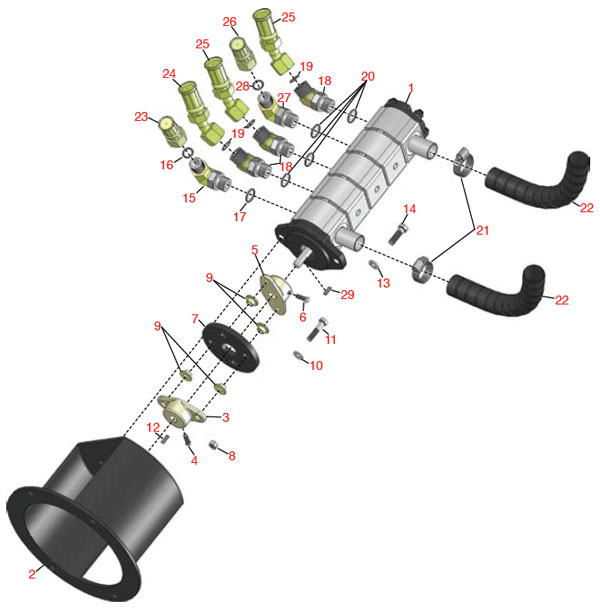

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R107-2577 107-2577 Gear Pump - 5 Section 1
1 R92-9764 92-9764 Use R107-2577
2 R83-1060-03 83-1060-03 Adapter - Pump 1
3 R27-1960 110-5236 Hub - Engine 1
4 R3241-2 3241-2 Screw - Set Sq.Hd. 1/4 x 5/8 2
5 R27-1970 27-1970 Hub - Pump 1
6 R3241-6 3241-6 Screw - Set Sq. Hd. 1/4 x3/4 2
7 R44-2230 44-2230 Coupling - Rubber Pump 1
8 R3296-29 3296-29 Locknut - 5/16-18 ESNA 4
9 R27-6600 27-6600 Spacer - Pump Coupling 4
10 R3256-23 3256-3 Use R453009 4
10 R3256-3 3256-3 Use R453009 4
10 R453009 3256-3 Washer - Flat 5/16 SAE 4
11 R400190 322-6 Bolt - Hex Hd 5/16-18 x 1-1/4 GR5 4
12 R1164 10-7070 Key - Reel Pulley 1
13 R3253-21 3253-21 Washer - Lock 3/8 2
14 R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4 2
15 R340-105 340-105 Fitting - Hyd 1
16 R237-80 237-80 O-Ring 1
17 R237-30 237-30 O-Ring - Seal 1
18 R340-87 340-87 Fitting - Hyd 3
19 R237-22 237-22 O-Ring 3
20 R237-42 237-42 O-Ring 4
21 RG116 2412-34 Clamp - Hose .75-1.5 BX/10 1
22 R83-0910 83-0910 Hose - Outside Inlet - Pump 2
22 R95-5966 95-5966 Hose - Inlet - Pump - Metal Tank 2
23 R112-0205 112-0205 Hose Assy - LH Drive Motor 1
24 R98-2150 98-2150 Hose Assy - Valve to Pump 1
25 R98-0649 98-0649 Hose Assy - Valve to Pump 2
26 R83-1350 83-1350 Hose Assy - Steering Cylinder 1
27 R340-82 340-82 Fitting - 90 Deg 1
28 R237-21 237-21 O-Ring 1
29 R5-0946 5-0946 Key - 3/16 x 3/16 x 1-1/8 1
