Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

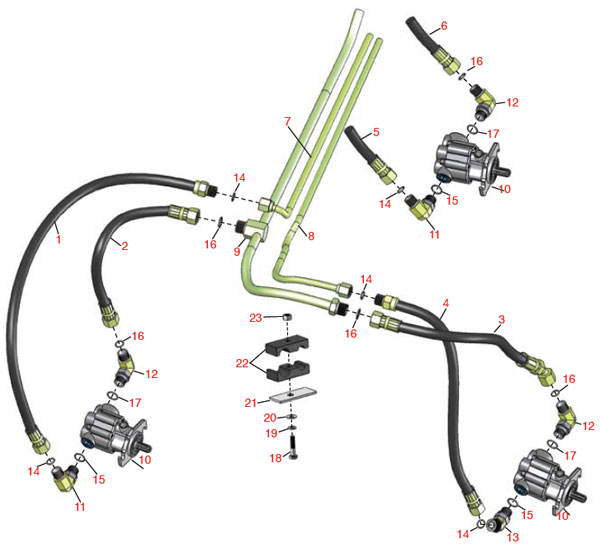

1 R63-3810 95-5984 Hose Assy - RH Pressure 1
1 R95-5984 95-5984 Hose Assy - RH Pressure
2 R63-3820 95-5985 Hose Assy - RH Return 1
2 R95-5985 95-5985 Hose Assy
3 R63-3830 95-5989 Hose Assy - LH Return 1
3 R95-5989 95-5989 Use R63-3830
4 R63-3870 95-5988 Hose Assy - LH Pressure 1
4 R95-5988 95-5988 Use R63-3870
5 R63-3860 63-3860 Hose Assy - Rear Pressure 1
5 R95-5986 95-5986 Hose Assy - Rear Reel Motor
6 R63-3840 63-3840 Hose - Rear Motor Return 1
6 R95-5987 95-5987 Use R63-3840
7 R63-4030 63-4030 Tube - Hyd 1
8 R63-4020 63-4020 Tube - Hyd 1
9 R100-6431 100-6431 Tube - Return 1
10 R105-9770 105-9770 Motor - Reel Hyd Quick Release 3
10 R10-5090 70-9800 Use R105-9770
10 R70-9800 70-9800 Use R10-5090
10 R94-3506 94-3506 Use R105-9770
11 R340-77 340-77 Fitting - Hyd 2
12 R340-98 340-98 Fitting - Hyd 3
13 R340-87 340-87 Fitting - Hyd 1
14 R237-22 237-22 O-Ring 5
15 R237-42 237-42 O-Ring 3
16 R237-30 237-30 O-Ring - Seal 3
17 R237-79 237-79 O-Ring 3
18 R3234-34 3234-34 Bolt - Hex Washer 1/4 x 2 1
19 R3253-3 3253-3 Washer - Lock 1/4 1
20 R3256-22 3256-22 Washer - Flat 1/4 Yellow 3
21 R69-9760 69-9760 Cover Plate - Hyd Line Clamp 1
22 R56-7970 56-7970 Plastic Clamp 2
23 R301504 3296-16 Locknut - ESNA 1/4-20 2
