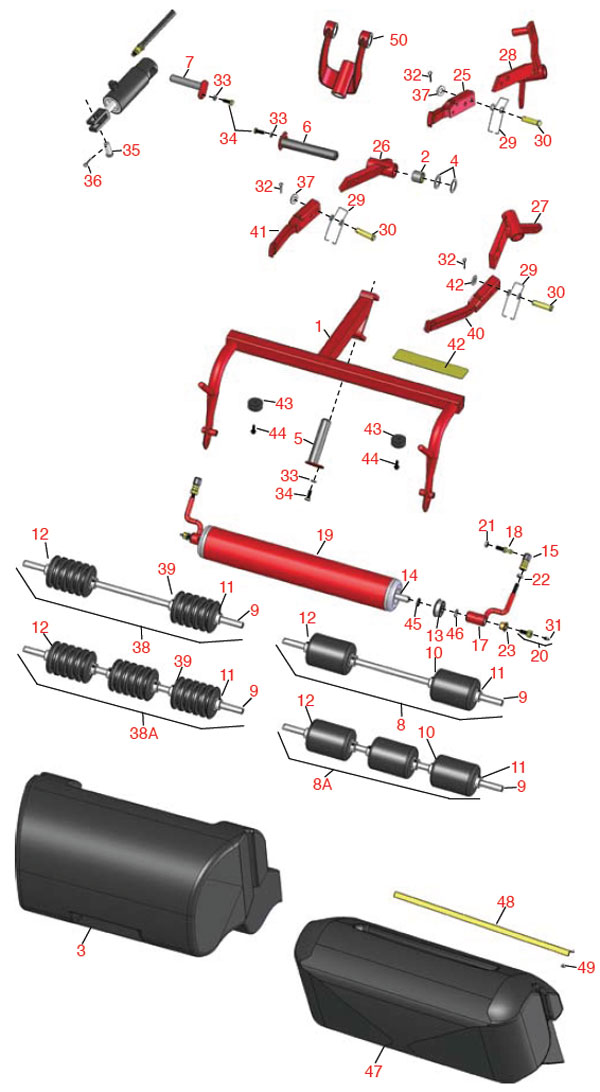

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R92-9177 92-9177 Frame - Pull RH 1
1 R86-9810 86-9810 Frame - Pull LH 1
1 R112-0283 112-0283 Frame - Pull LH 1
1 R86-9820 86-9820 Frame - Pull Center 1
1 R112-0284 112-0284 Frame - Pull Rear 1
1 R104-2054 104-2054 Use R86-9810
1 R104-2055 104-2055 Use R92-9177
1 R104-2056 104-2056 Use R86-9820
1 R105-0451 105-0451 Frame - Pull Rear (Center) 1
2 R3-0348 3-0348 Bushing
3 R36-7250 36-7250 Grass Basket 1
3 R37-8130 37-8130 Use R36-7250
4 R10-8110 10-8110 Washer - Pivot Pin 12
5 R10-6090 10-6090 Pin - Pivot 4 7/8 Long 3
6 R10-6110 10-6110 Pin - Hinge 6 1/4 Long 2
6 R27-2550 27-2550 Pin - Hinge 6-5/8 Long 1
6 R114-4685 114-4685 Pin - Hinge 6-5/8 Long 1
6 R114-4683 114-4683 Pin - Hinge 6-1/4 Long 2
7 R10-6060 10-6060 Pin - Pivot 3 7/8 Long 3
8 R150325 R&R Only Roller - 3.5 UHMW Grooved 1
8A R150329 R&R Only Roller - 3.5 UHMW Grooved 1
9 R150326 R&R Only Shaft - Stainless Roller 1
10 R150327 R&R Only Roller End - 3.5 UHMW Grooved 2
11 R150328 R&R Only Collar - Retaining 5/8 4
12 R302295 R&R Only Washer - Fwy 4
13 R251-141 251-141 Bearing - Roller 2
14 R21-8470 21-8470 Shaft - Roller 1
15 R99-1460 99-1460 Receiver - Ball Joint 2
17 R92-0585 95-0585 Arm - Pull RH 1
17 R92-0586 95-0586 Arm - Pull LH 1
18 R94-2958 94-2958 Stud - Alloy Ball Joint 2
19 R99-4277 99-4277 Roller - Basket 1
20 R11-0160 11-0160 Screw - Roller Shaft 2
21 R3254-6 3254-6 Washer - Lock 3/8 2
22 R3220-3 3220-3 Nut - Jam Ball Joint 2
23 R3-1506 3-1506 Bushing 12
25 R62-2420 62-2420 Bar - Lift RH / Rear 2
26 R62-2440 62-2440 Arm - Lift RH 1
27 R62-2460 62-2460 Arm - Lift LH 1
28 R68-5380 68-5380 Arm - Lift Rear 1
29 R57-7650 57-7650 Spring - Torsion Lift Arm 3
30 R63-8750 63-8750 Clevis Pin 3
31 R302-5 302-5 Fitting - Grease
32 R3272-12 3272-12 Pin - Cotter 1/8 x 1-1/4 3
33 R3256-23 3256-23 Use R453009 6
33 R453009 3256-23 Washer - Flat 5/16 SAE 6
34 R322-1 322-1 Bolt - Hex Hd 5/16-18 x 1/2 6
35 R283-8 283-8 Clevis Pin - 1/2 x 1 27/64 3
36 R3272-10 3272-10 Pin - Cotter 1/8 x 3/4 3
37 R3256-26 3256-26 Use R453017 3
37 R453017 3256-26 Washer - Flat 1/2 3
38 R150330 R&R Only Roller - 3-1/2 Solid Plas 1
38A R150332 R&R Only Roller - UHMW Solid 3-1/2 3 Sec 1
39 R150331 R&R Only Section - 3.5 UHMW 2
40 R94-5586-01 94-5586-01 Bar - Lift LH 1
41 R94-5588-01 94-5588-01 Bar - Lift RH 1
42 R93-8064 93-8064 Decal - Warning
43 R94-4548 94-4548 Bumper - Rubber Pull Frame
44 R32144-44 32144-44 Use R49-2040
44 R49-2040 49-2040 Bolt - Hex Washer 1/4-20 x 3/4 2
45 R253-83 253-83 Seal - Oil 7/8 OD x 5/8 ID 2
46 R3290-317 3290-317 Washer - Washer 2
47 R108-8642 108-8642 Grass Basket w/Bkt 1
48 R104-2607 104-2607 Strip - Reinforcing Grass Basket 1
49 R3290-382 3290-382 Rivet - 5/32 x 1/2 Pop Rivet 8
50 R10-7820 10-7820 Pivot Hinge Assy 1
50 R105-0452 105-0452 Pivot Hinge Assy 1
