Search Parts

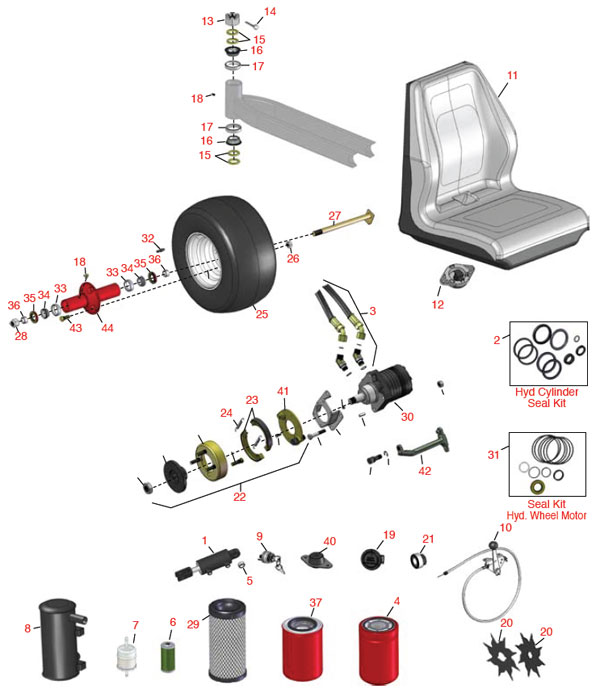

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
Filters
2 R105-3836 105-3836 Seal Kit - 3
2 R99-8162 99-8162 Seal Kit - Fits R99-8158 Cylinder 2
2 R99-8163 99-8163 Seal Kit - Fits R99-8157 Cylinder 1
11 R75-1310 75-1310 Filter - Hydraulic 1
12 R108-3811 108-3811 Element - Air Cleaner 1

Filters - 3200 Model 04380 - Gas
13 R491056 491056 Filter - Engine Oil 1
13 RS491056 491056 B-S Filter-Oil 1
14 R18-1520 95-2926 Filter - Fuel 1
14 RS821026 95-2926 B-S Filter-Fuel 1
15 R130366040 130336040 Filter - Fuel 1

Filters - 3200D Model 04381 - Diesel
15 R140516190 140516190 Filter - Oil Diesel Engine 5.5 1
15 R140516990 140516990 Filter - Oil Diesel Engine 4 1
21 R217-60 217-60 Wheel - With Valve Stem - White 3
21 R353844 28-3680 Tire - 18 - 9.50 x 8 Smooth 2 3

Tires
21 R353844 28-3680 Tire - 18 - 9.50 x 8 Smooth 2 3
22 R232-24 232-24 Stem - Valve w/ Cap 2
22 R232-27 232-27 Stem - Valve w/ Cap 1
31 R76-0800 76-0800 Seal Kit - Hyd Motor 1
31 R93-2254 93-2254 Hose Assy - Front RH Cylinder 2
31 R93-2255 93-2255 Hose Assy - Front LH Cylinder 1
Hoses
31 R93-2256 93-2256 Hose Assy - Front LH Cylinder 1
31 R93-2258 93-2258 Hose Assy - Rear Cylinder 1
31 R93-2264 93-2264 Hose Assy - RH-LH Reel Motor 2
31 R94-1328 94-1328 Hose Assy - Rear Reel Motor 1
31 R94-3477 94-3477 Hose Assy - Rear Cylinder 1
31 R95-2907 95-2907 Hose Assy - Rear Reel Motor 2
31 R95-2908 95-2908 Hose Assy - RH-LH Reel Motor 2
31 R95-2909 95-2909 Hose Assy - RH-LH Reel Motor 2
31 R94-8178 94-8178 Use R76-0800

Gauges
41 R27-2360 27-2360 Switch - Key 6 LEAD.9/16 Mount 1
42 R66-2950 66-2950 Meter - Hour Quartz 1

Other Parts Available
50 R83-1030 83-1030 Mount - Engine 3
51 R94-8153 94-8153 Muffler 1
52 R18-6320 18-6320 Washer - Steering Fork 4
53 R254-70 254-70 Bearing - Tapered 2
54 R254-61 254-61 Cup 2
55 R302-5 302-5 Fitting - Grease
56 R32136-9 32136-9 Nut - 1-1/4-12 Slotted 1
57 R3272-37 3272-37 Pin - Cotter 1/4 x 2 1/2 1
58 R750105 92-6280 Seat - Grey 22 High Back w/Switch 1
58 R100-3187 100-3187 Use R750105
59 R92-6282 92-6282 Switch - Kill Seat 1
60 R93-2322 93-2322 Control - Throttle 1
60 R93-2329 93-2329 Control - Choke 1
61 R3296-67 3296-67 Locknut - 3/4-16 Heavy Jam 1
62 R74-3730 74-3730 Spacer 2
63 R72-9710 72-9710 Hub Assy - Rear Tire
63 R75-9440 75-9440 Use R72-9710 1
64 R253-111 253-111 Seal 2
65 R254-78 254-78 Bearing 2
66 R254-79 254-79 Cup - Bearing 2
67 R72-9710 75-9440 Hub Assy - Rear Tire 1
69 R10-6830 75-9440 Stud - Wheel 1/2-20 x 1 3/4
69 R10-6830S 10-6830 Stud - Drive - Hub 4
70 R700414 Zerk - Grease 1/4-28 45 Deg
71 R242-50 242-50 Nut - 1/2-20 Wheel 12
72 R5-3934 5-3934 Bolt - Steering Caster Fork 1
73 R26-3790 26-3790 Nut - Hex - Wheel Motor 1-20
74 R10-6821 10-6821 Hub And Drum Assy
75 R10-6870-03 10-6870-03 Hub - Wheel
76 R10-6850 10-6850 Drum - Brake
77 R85-6540 85-6540 Stud - Drive
78 R321-5 321-5 Bolt - Hex Hd 1/4-20 x 7/8
79 R71-1500 71-1500 Brake Assy 2
80 R70-9840 70-9840 Shoe - Brake 4
81 R70-9880 70-9880 Spring - Brake Shoe 2
81 R70-9880S R&R Only Spring - Brake Shoe - Stainless 2
82 R104-7708 104-7708 Cam - Brake w/Clip 2
84 R150223 R&R Only Clip - Retaining - Brake Cam 2
85 R19M7819 Bolt - Hex Hd M12 x 90
86 R84-2000-03 84-2000-03 Bracket-Brake
87 R92-9199 92-9199 Motor - Hydraulic Wheel 1
88 R237-80 237-80 O-Ring
90 R237-65 237-65 O-Ring
91 R105-3820 105-3820 Cylinder - Hydraulic Rear 1
91 R94-6357 94-6357 Use R105-3820
91 R94-6357 94-6357 Use R105-3820
92 R283-8 283-8 Clevis Pin - 1/2 x 1 27/64 1
93 R3272-11 3272-11 Pin - Cotter 1
94 R105-3821 105-3821 Cylinder - Hydraulic LH / RH 2
94 R93-2246 96-2246 Use R105-3821
94 R99-8158 99-8158 Use R105-3821
95 R20-7380 20-7380 Spiker Blade - 12 Ga 10
95 R99-1612 99-1612 Spiker Blade - 10 Ga .134 w/Hex Hol 10
96 R93-2096 93-2096 Arm - Brake 2
97 R3257-42 3257-42 Key - Woodruff 5/16 x 1
97 R71-1360 94-3405 Bearing - Reel 2
