Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
R&R Reels Available, Lifetime Guaranteed

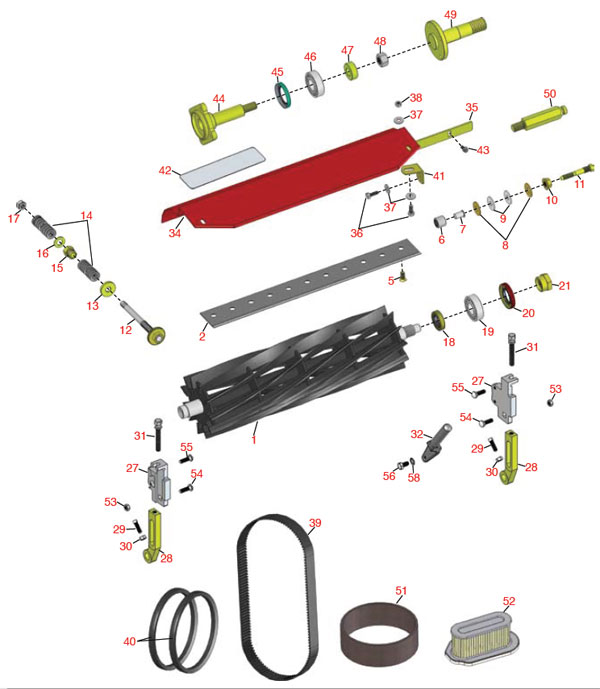

1 R98-5919 98-5919 Reel - 11 Blade 1
1 R150750 R&R Only Reel - 14 Blade 1

R&R Bedknives Available, Lifetime Guaranteed
2 R98-7260 98-7260 Bedknife - Tournament 1
2 R98-7261 98-7261 Bedknife - Micro Cut 1

Overhaul Kits Available
4 R30067 30067 Filter Kit - 400 Hr

Other Parts Available
5 R150476 3-6462 Screw - Regular 11
5 R150477 57-4910 Screw - Regular 1/2 Long 11
6 R63-9510 63-9510 Bushing - Rubber For Bed Bar 2
7 R52-2890 52-2890 Bushing - Flanged 2
8 R52-2860 52-2860 Washer - Bed Bar Pivot 4
9 R52-2900 52-2900 Washer - Nylon 4
10 R32128-48 32128-48 Locknut - 7/16-20 Flanged 2
11 R65-6270 65-6270 Bolt - Bed Bar 2
12 R94-5873 94-5873 Handle - Adjusting Bed Bar 2
13 R94-5859 94-5859 Washer - Hardened 2
14 R93-9043 93-9043 Washer - Spring Belleville 32
15 R98-5913 98-5913 Nut - Spring 2
15 R105-5379 105-5379 Use R98-5913
16 R94-5858 94-5858 Washer - Flat 7/16 SAE 2
17 R3296-48 3296-48 Locknut - 7/16-14 ESNA 2
18 R253-96 253-96 Seal - Oil Single Lip Reel 2
19 R251-342 251-342 Bearing - Reel 2
20 R253-163 253-163 Seal - Reel 2
21 R92-7302 92-7302 Locknut - Reel 1
27 R93-6049 93-6049 Bracket - Hoc LH 1
27 R93-6048 93-6048 Bracket - Hoc RH 1
28 R93-6090 93-6090 Arm - Roller Hoc 2
29 R3242-4 3242-4 Screw - Set Sq Hd 5/16-18 x 1 2
30 R443106 3218-2 Nut - 5/16-18 Y/Zinc Plated 2
31 R93-6051 93-6051 Bolt - Hoc 2
32 R65-8570 65-8570 Rod - Mounting Grass Basket 2
33 R302-5 302-5 Fitting - Grease 2
34 R98-5918 98-5919 Shield - Grass 1
35 R98-5933 98-5933 Bar - Cut Off Grass Shield 1
36 R400106 321-3 Bolt - Hex Hd 1/4-20 x 5/8 4
37 R3256-22 3256-22 Washer - Flat 1/4 Yellow 6
38 R301504 3296-42 Locknut - ESNA 1/4-20 4
39 R65-9080 65-9080 Belt - Countershaft 1
39 R150525 65-6200 Belt - Reel Drive 1
40 R92-9218 92-9218 Belt - Engine Set of 2 1
41 R65-6450 65-6450 Bracket - LH 1
41 R65-6460 65-6460 Bracket - RH 1
42 R93-8064 93-8064 Decal - Warning 1
43 R32144-73 32144-73 Screw - Machine Hex Washer Head 5
44 R94-5850 94-5850 Spindle - Rear Roller Drum 1
45 R253-159 253-159 Seal - Drum 2
46 RA203605 251-82 Bearing 2
47 R65-6530 65-6530 Spacer - Seal 1
48 R3296-33 3296-33 Locknut - 5/8-18 ESNA Jam 1
49 R88-7510 88-7510 Shaft - Extension RH Drum 1
49 R88-7520 88-7520 Shaft - Extension LH Drum 1
50 R88-7580 88-7580 Shaft - Transport Wheel LH 1
50 R88-7590 88-7590 Shaft - Transport Wheel RH 1
51 RAK11013-2132 93-8636 Kawasaki Element-Air Filter 1
52 RAK11013-2133 93-8637 Kawasaki Element-Air Filter 1
53 R32128-21 32128-21 Locknut - Flanged 3/8-16 Whiz Top Lock 2
54 R3231-5 3231-5 Bolt - Carriage 3/8-16 x 1-3/4 2
55 R92-8914 3231-5 Bolt - Tapered Face 5/16-18 x 7/8 4
56 R322-2 322-2 Bolt - Hex Hd 5/16-18 x 5/8 4
57 R3255-8 3255-8 Washer - Lock 5/16 Ext 4
